CiT’s low profile CPU cooler is designed for space limited applications that utilises Intel platforms. Made using aluminium fins for excellent thermal conduction. In addition, the CPU cooler is equipped with a custom PWM 95mm silent fan that is staggered against the aluminium fins for better airflow focus and enhanced heat dissipation. Measuring only 50mm tall, it’s a leading choice for slim cases utilising Intel processors. Get maximum cooling with minimal footprint.

Specifications

CPU
TDP: 85W
CPU Block Material: Aluminium
CPU Block Width (mm): 90mm
CPU Block Height (mm): 25mm

Fan
Fan Dimensions: 95 x 95 x 25mm
Rated Speed (PWM): 0-2400 ± 10% RPM
Air Flow: 40.79CFM
Noise: 29.5 dBA (Max.)
Bearing Type: Hydraulic Bearing
Connector: 4pin PWM
Starting Voltage: 5V
Rated & Operating Voltage: 12V
Rated Current: 121mA
Power Input: 1.5W
Fan Air Pressure: 2.44mm H2O
Static Pressure : 3.01mm H2O
M.T.B.F: 30,000 Hours

Compatibility
Intel: 1156 / 1366 / 1700

General Specifications

Manufacturer Part Number: CIT-CPU-INTEL
EAN Number: 5055492416285
Has Mains Plug: No
Colour: Black / Silver
What's In The Box: CPU Cooler
Fixing Screws
Thermal Paste
Unit (Product) Dimensions (mm): 95mm x 50mm x 95mm (W x H x D)
Packaging Dimensions (mm): 103mm x 67mm x 105mm (W x H x D)
Net Weight (KGs): 0.25 KGs
Gross Weight (KGs): 0.3 KGs

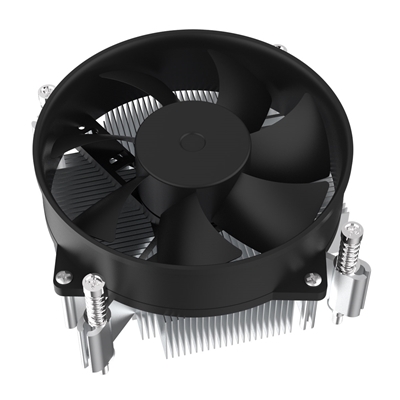

Low Profile CPU Cooler With 92mm PWM Fan For Intel Platform
